High Rigidity High Speed Rigid Frame Stranding Machine with Max Stranding Od 45mm for Cable and Wire Production

Name: High Rigidity High Speed Rigid Frame Stranding Machine with Max Stranding Od 45mm for Cable and Wire Production
Brand: BEYDE
Price: 1 USD

Cheap High Rigidity High Speed Rigid Frame Stranding Machine with Max Stranding Od 45mm for Cable and Wire Production for sale

Brand Name : BEYDE

Model Number : 500/6+12+18

Certification : CE

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Supply Ability : 200 SET/YEAR

Delivery Time : 90 DAYS AFTER DEPOSIT

Packaging Details : SAFE PACKAGE FOR LONG SEA FREIGHT

Max Stranding Od : 45mm

Mould Life : 1,000,000 shots

Line Speed : 60m / min

Adcantage : Long service life,durable

Conductor Size : 1.5 mm-5.0 mm

Structure : Tubular type

Tension : merchanic

Lay Of Length : 48.10 - 155.90 MM

Inlet Wire Dia : Φ0.16mm-Φ1.05mm

Safetyfeatures : Emergency stop, overload protection, safety guards

Materialcompatibility : Copper, Aluminum, Optical Fiber, Steel Wire

Option Function : Armoring/stranding

Productname : Cable Stranding Machine

Driven Motor : 37 KW

Conductor Dia : 1.4~5.0mm

Single Wire Od : 0.5mm-3.0mm/1mm-5mm

Contact Now

Model Breakdown

JLK: Rigid frame (cage) stranding machine series.
500: Nominal reel flange diameter of 500 mm (PN500).
6+12+18: A three-section cage with 6, 12, and 18 bobbins respectively, totaling 36 wires

Typical Technical Parameters

Specifications may vary slightly by manufacturer.

Parameter	Specification
Single Wire Diameter	• Copper: 1.2–5.0 mm • Aluminum: 1.5–5.0 mm
Max. Stranded Conductor OD	Approx. 30 mm (for bare conductors)
Stranding Cage Speed	• 6+12 sections: 50–126 rpm • 18-section: 46–111 rpm
Max. Line Speed	Approx. 52 m/min
Stranding Pitch Range	Approx. 50–1100 mm
Take-up Reel	PN1000–PN2000
Center Height	1000 mm
Main Motor	Approx. 37 kW (frequency conversion)

Main Components

Central Pay-off Stand: Supports the core wire.
Rigid Cage Stranding Sections (6+12+18): The core component that twists the wires.
Compacting & Pre-forming Unit: Shapes the conductor into round or sector form.
Meter Counter: For length measurement.
Dual/Double Drum Capstan: Provides the pulling force.
Take-up & Traverse Unit: Winds the finished cable onto the reel.
Drive & Control System: Includes PLC, inverters, and safety interlocks

Key Features

High Rigidity & Stability: Heavy-duty frame and high-precision bearings ensure stable, high-speed operation with low vibration.
Multi-Section Cage: The 6+12+18 configuration is ideal for large-section and complex (e.g., sector) conductors.
Precise Tension Control: Mechanical or pneumatic tensioning ensures uniform wire tension for high-quality, round conductors.
Efficient Production: High line speed and large bobbin capacity significantly boost output.
Automated Control: PLC and touch-screen interface allow easy setting of parameters like line speed and pitch

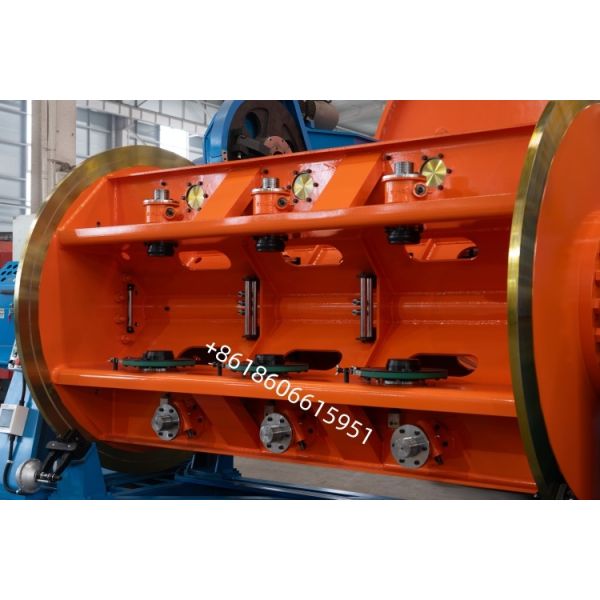

High Rigidity High Speed Rigid Frame Stranding Machine with Max Stranding Od 45mm for Cable and Wire Production

High Rigidity High Speed Rigid Frame Stranding Machine with Max Stranding Od 45mm for Cable and Wire Production Images
